• 42003 Series

    42003 Series

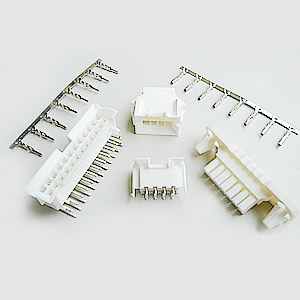

    .165"(4.2mm) Wire-to-Board Crimp Terminal Housings
    • Current rating: 6A AC, DC.(AWG#18)
    • Voltage Rating: 600V AC,DC
    • Withstanding Voltage: 1500V AC/minute.
    • Insulation resistance: 1000MΩ min
    • Contact resistance: Initial Value/ 10mΩ max
    • Temperature rise: -40'C ~ 105'C.
  • 4.2 mm Board-to Board Right Angle Headers

    42003WR-X-X-X 4.2 mm Board-to Board Right Angle Headers



               Circuit: 2, 4, 6 ~ 24

               Material:   nylon 66  UL 94V0

               Contact:  Tin-plated Brass , Gold-plated Brass

               Color:  Natural

               Packaging: Trays

    Inquiry Info.

  • 4.2 mm Board-to-Board Straight Angle Headers

    42003WS-X-X-X 4.2 mm Board-to-Board Straight Angle Headers



               Circuit: 2, 4, 6 ~ 24

               Material:   nylon 66  UL 94V0

               Contact:  Tin-plated Brass , Gold-plated Brass

               Color:  Natural

               Packaging: Trays

    Inquiry Info.

Total of 2 results
