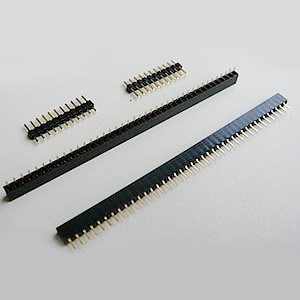

25409 Series
.100"(2.54mm) Board-to-Board Connectors- Current rating: 3A AC, DC.
- Voltage Rating: 250V AC,DC
- Withstanding Voltage: 600V AC/minute.
- Insulation resistance: 1000MΩ min
- Contact resistance: Initial Value/ 20mΩ max
- Temperature rise: -40'C ~ 105'C.
-

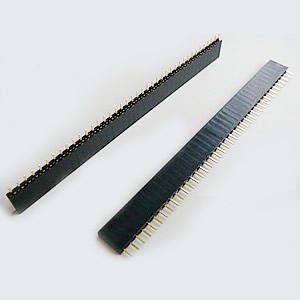

25409WFS-X-X-X 2.54 Single Row Straight Headers
Circuit: 2, 3, 4 ~ 40
Material: PBT UL 94V0
Contact: Gold-plated Phosphor Bronze
Color: Black
Packaging: Trays
-

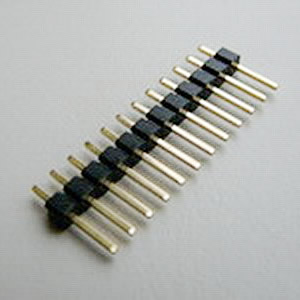

25409WMS-X-X-X 2.54 mm Single Row Straight Angle Pin Headers
Circuit: 2, 3, 4 ~ 40
Material: PBT UL 94V0
Contact: Gold-plated Brass
Color: Black
Packaging: 1Kpcs/Bag
-

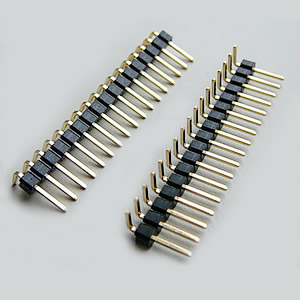

25409WMR1-X-X-X 2.54 mm Single Row Right Angle Headers
Circuit: 2, 3, 4 ~ 40
Material: PBT UL 94V0 / Nylon 6T UL94V0
Contact: Gold-plated Brass
Color: Black
Packaging: 1Kpcs/Bag
-

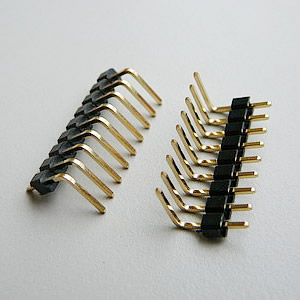

25409WMR2-X-X-X 2.54 mm Single Row Right Angle Headers
Circuit: 2, 3, 4 ~ 40
Material: PBT UL 94V0 / Nylon 6T UL94V0
Contact: Gold-plated Brass
Color: Black
Packaging: 1Kpcs/Bag
-

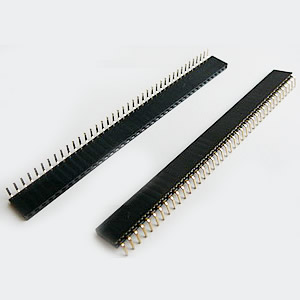

25409WFR-X-X-X 2.54 mm Single Row Right Angle Headers
Circuit: 2, 3, 4 ~ 40
Material: PBT UL 94V0 , nylon 6T UL 94V0
Contact: Gold-plated Phosphor Bronze
Color: Black
Packing: Trays
