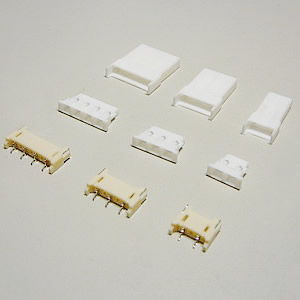

• 40001 Series

    40001 Series

    .157"(4.0mm) Crimp Terminal Housings
    • Current rating: 1A AC, DC.(AWG#22)
    • Voltage Rating: 600V AC,DC
    • Withstanding Voltage: 2p:3000V AC/minute,3~5p: 1000V AC/mimute
    • Insulation resistance: 1000MΩ min
    • Contact resistance: Initial Value/ 10mΩ max
    • Temperature rise: -25'C ~ 85'C.

  • 40001TF-X-X-X 4.0 mm Female Crimp Terminal



            Material: Phosphor Bronze

            Wire Range: #22~ #28 AWG

            Finished: Tin-plated

            Packing:  10kpcs/Reel

    Inquiry Info. 40001TF

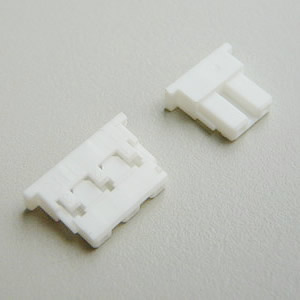

  • 4.0 mm Male Crimp Terminal Housings

    40001HM-X-X-X 4.0 mm Male Crimp Terminal Housings



               Circuit: 2, 3 , 4 , 5

               Material: Nylon 66  UL 94V0

               Color: White

               Packaging:  1Kpcs/bag

    Inquiry Info. 40001HM

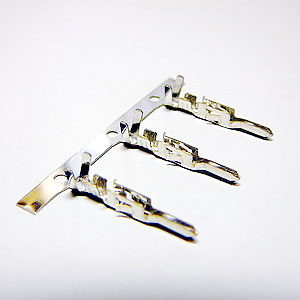

  • 4.0 mm Male Crimp Terminal

    40001TM-X-X-X 4.0 mm Male Crimp Terminal



            Material:  Phosphor Bronze

            Wire Range: #24~ #28 AWG

            Finished: Tin-plated

            Packaging:  10kpcs/Reel

    Inquiry Info.

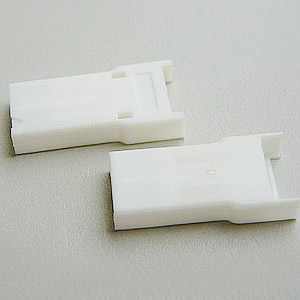

  • 4.0 mm Female Crimp Terminal Housings

    40001HF-X-X-X 4.0 mm Female Crimp Terminal Housings



              Circuit: 2, 3 , 4 , 5

               Material: Nylon 66  UL 94V0

               Color: White

               Packaging:  1Kpcs/bag

    Inquiry Info.

Total of 4 results
