30002 Series
.118"(3.0mm) Wire-to-Board Crimp Terminal Housings- Current rating: 5A AC, DC.(AWG#20)
- Voltage Rating: 250V AC,DC
- Withstanding Voltage: 1500V AC/minute.
- Insulation resistance: 1000MΩ min
- Contact resistance: Initial Value/ 20mΩ max
- Temperature rise: -25'C ~ 85'C.
-
30001TF-X-X-X 3.0 Female Crimp Terminal
Material: Phosphor Bronze
Wire Range: T2(#20~ #24 AWG ), T1 (#26 ~ #30 AWG )
Finished: Tin-plated /Gold-flash in contact area
Packaging: 10kpcs/Reel
-

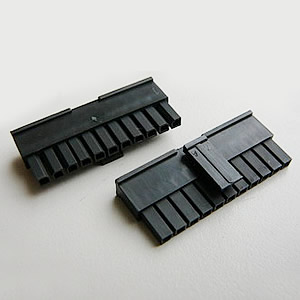

30002HM-X-X-X 3.0mm Single Crimp Terminal Housings
Circuit: 2, 3 , 4 ~ 12
Material: Nylon 66, UL 94V0
Color: Black
Packaging: 1Kpcs/bag
-
30001TM-X-X-X 3.0 mm Male Crimp Terminal
Material: Phosphor Bronze
Wire Range: T2(#20~ #24 AWG ), T1 (#26 ~ #30 AWG )
Finished: Tin-plated /Gold-flash in contact area
Packaging: 10kpcs/Reel
-
30002HF-X-X-X 3.0 mm Single Female Crimp Terminal Housings
Mounting Ears : No / Yes
Circuit: 2, 3 , 4 ~ 12
Material: Nylon 66, UL 94V0
Color: Black
Packaging: 1Kpcs/bag
Total of 4 results
