• .100"(2.54mm) Wire-to-Board Crimp Terminal Housings
    • Current rating: 3A AC, DC.(AWG#22)
    • Voltage Rating: 250V AC,DC
    • Withstanding Voltage: 600V AC/minute.
    • Insulation resistance: 1000MΩ min
    • Contact resistance: Initial Value/ 15mΩ max
    • Temperature rise: -40'C ~ 105'C.

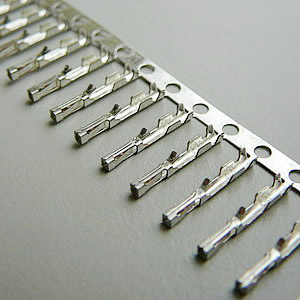

  • 25407TF-X-X-X 2.54 mm Crimp Terminal



            Material: Brass /Phosphor bronze

            Wire Range: #22~ #24 AWG

            Finished: Tin-plated /Gold-flash in contact area

            Packaging:  10kpcs/Reel

    Inquiry Info. 25407TF

  • 25407HM-X-X-X-X 2.54 mm Crimp Terminal Housings



               Lock : A-Non-polarized /B-Polarized /C-Latch

               Circuit: 2, 3 , 4 ~  16

               Material: Nylon 66,  UL 94V0

               Color: Black

               Packaging: 1Kpcs/bag

    Inquiry Info. 25407HM 25407HM 25407HM

  • 25407WS-X-X-X 2.54 mm Straight Angel Header



               Circuit: 2, 3, 4~ 12

               Material:  PBT + glass fiber   UL 94V0

               Contact:  Tin-plated Brass , Gold-plated Brass

               Color:  Black

               Packaging: 1kpcs/Bag

    Inquiry Info. 25407WS

  • 25407WR-X-X-X 2.54 mm Right Angel Header



               Circuit: 2, 3, 4~ 12

               Material:  PBT + glass fiber   UL 94V0

               Contact:  Tin-plated Brass , Gold-plated Brass

               Color:  Black

               Packing: 1kpcs/Bag

    Inquiry Info. 25407WR

Total of 4 results
