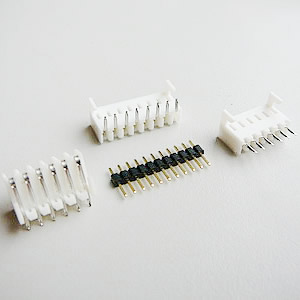

• .100"(2.54mm) Board-to-Board Connectors
    • Current rating: 2.5A AC, DC.
    • Voltage Rating: 250V AC,DC
    • Withstanding Voltage: 1500V AC/minute.
    • Insulation resistance: 1000MΩ min
    • Contact resistance: Initial Value/ 20mΩ max
    • Temperature rise: 0'C ~ 70'C.

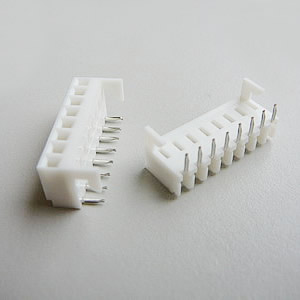

  • 25401A-X-X-X 2.54 mm Right Angle Board to Board Header



               Circuit:  2, 3, 4 ~  25

               Material:  nylon 66  UL 94V0

               Contact:  Tin-plated Brass

               Color:  White

               Packaging: Bag

    Inquiry Info. 25401A

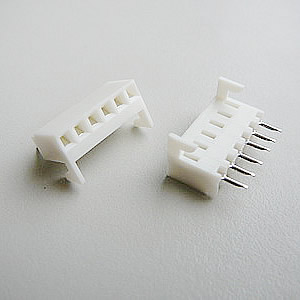

  • 25401B-X-X-X 2.54 mm Top Entry Board to Board Header



               Circuit:  2, 3, 4 ~  25

               Material:  nylon 66  UL 94V0

               Contact:  Tin-plated Brass

               Color:  White

               Packaging: Bag

    Inquiry Info. 25401B

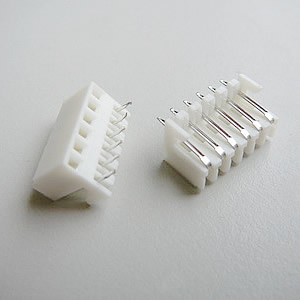

  • 25401C-X-X-X 2.54 mm Bottom Board to Board Header



               Circuit:  2, 3, 4 ~  25

               Material:  nylon 66  UL 94V0

               Contact:  Tin-plated Brass

               Color:  White

               Packaging: Bag

    Inquiry Info. 25401C

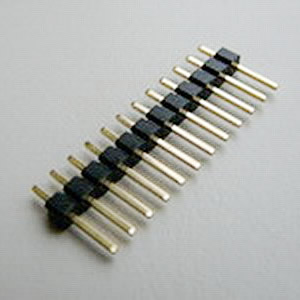

  • 25409WMS-X-X-X 2.54 mm Single Row Straight Pin Header



               Circuit:   2, 3, 4 ~ 40

               Material:   PBT UL 94V0 / Nylon 6T UL94V0

               Contact:  Gold-plated  Brass

               Color: Black

               Packaging: 1Kpcs/Bag

    Inquiry Info. 25409WMS

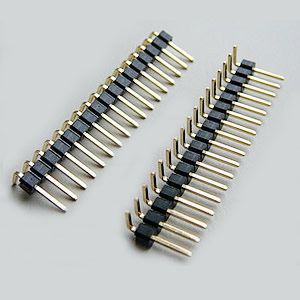

  • 25409WMR1-X-X-X 2.54 mm Single Row Right Angle Pin Headers



               Circuit:   2, 3, 4 ~ 40

               Material:   PBT UL 94V0 / Nylon 6T UL94V0

               Contact:  Gold-plated  Brass

               Color: Black

               Packaging: 1Kpcs/Bag

    Inquiry Info. 25409WMR1

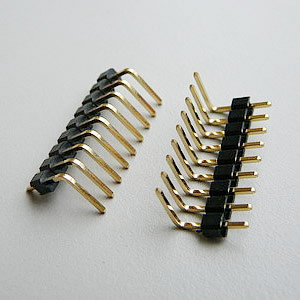

  • 25409WMR2-X-X-X 2.54 mm Single Row Right Angle Pin Headers



               Circuit:   2, 3, 4 ~ 40

               Material:   PBT UL 94V0 / Nylon 6T UL94V0

               Contact:  Gold-plated  Brass

               Color: Black

               Packaging: 1Kpcs/Bag

    Inquiry Info. 25409WMR2

Total of 6 results
